High Performance Microwave Probes

Model 40M Low Loss Picoprobe

Features of 40M-GSG-xxx-PLL

Durable DC to 40 GHz Insertion loss less than 0.4db typical, 0.5db max Return loss greater than 20db Measurement repeatability -52db Individually spring loaded contacts Variety of Footprints Patented coaxial design
	FIGURE 1
We have shaved another .35 db insertion loss off of our industry standard MODEL 40A PICOPROBE®. This probe is recommended for certain types of load pull and noise parameter measurements when even our standard, super low, 0.75 db insertion loss (typical at 40 GHz) is too high. We also offer low loss probes in DC to 50GHz and DC to 67GHz.

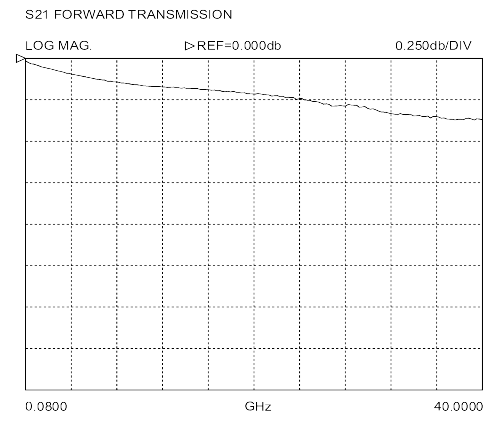

Insertion loss of 40M-GSG-100-PLL

---
