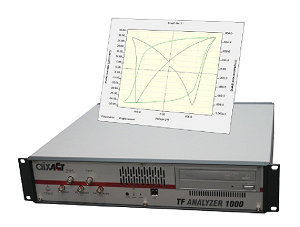

TF Analyzer 1000

TF ANALYZER 1000 is a compact ferroelectric voltage analyzer with all the basic characteristics testing functions of ferroelectric and piezoelectric materials. It can be used in conjunction with micro-displacement sensors such as laser interferometer and SPM scanning probe microscope. Analysis and testing of membranes and bulk ceramics and ferroelectric devices.

Main Specifications:
Voltage range: ± 12V standard (expandable to +/- 10kV)
Test frequency: 0.01Hz ～ 1000Hz
Maximum fatigue test frequency: 50kHz
Minimum pulse width: 20μs
Output resistance: 50Ω
Maximum capacitance: 100nF
Output current: +/- 50mA
Current amplifier: Current size range: 1nA ~ 1A
Testable functions:
The test software aixPlorer is based on the Windows 7 operating system and is extremely convenient to operate

Test function:
-Dynamic hysteresis loop (Hysteresis): Test frequency 0.01Hz ~ 1000Hz
-Fatigue: 50KHz
-Retention
-Imprint
-Leakage Current Test
-C (V) curve test
-Piezoelectric performance test (butterfly curve, d33 curve)

-Temperature Measurement Performance (Thermo Measurement)

---
