Durable
110 to 170 GHz
Patented Coaxial Design
Individually Spring-loaded Contacts
Bias-T Option Available
FIGURE 1
The PICOPROBE® MODEL 170, a high performance microwave probe which incorporates a WR-6 waveguide with our patented coaxial design techniques, has inherent low loss and low dispersion characteristics. Like all of our Picoprobe® microwave probes, the Model 170 features: individually spring loaded Beryllium-Copper tips which provide reliable contacts even when probing non-planar structures; direct viewing of probe tips for accurate positioning; and can be designed to almost any pitch and footprint. Smaller pitches and Ground-Signal-Ground footprints are recommended for optimum performance. Please contact our office for additional information regarding the performance specifications of the Model 170 Picoprobe®.
 |
|
|---|---|

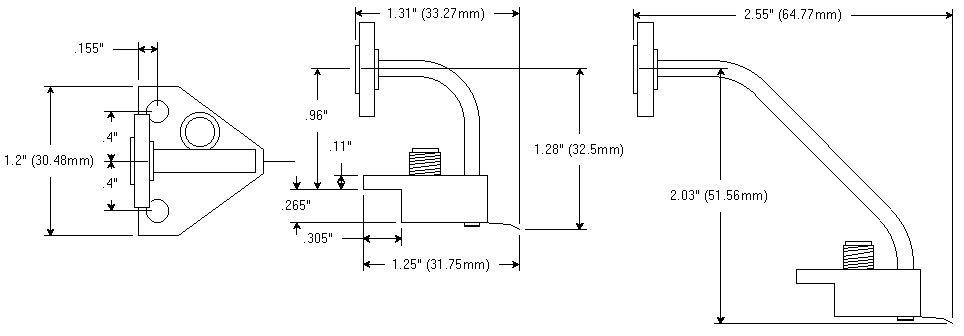

| Model 170-BT Waveguide Dimensions |
Model 170BT-M Waveguide Dimensions |
| FIGURE 2 | |
