Temperature range 8K-300K;
IV/CV/Microwave/Optoelectronic Experimental Testing/Superconducting Vertical Magnetic Field Measurement/Low Temperature Testing

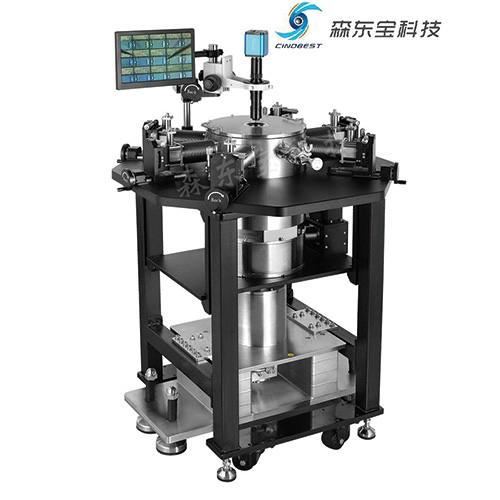

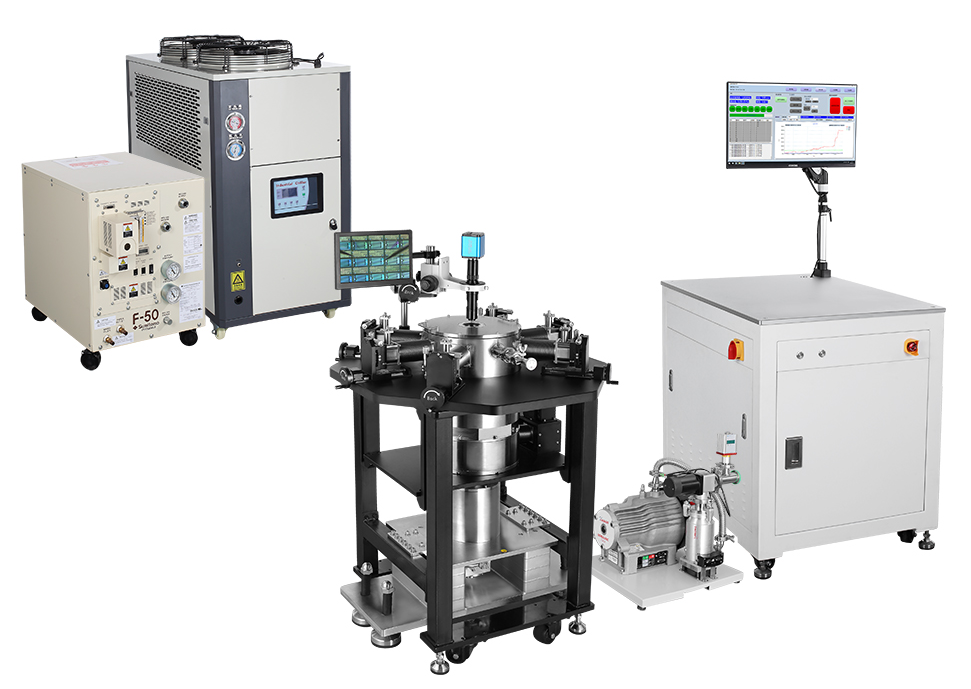

CINDBESTCRX | SM Low temperature superconducting vacuum probe station
|
Features / Applications
◆ 2-inch sample stage ◆ Vertical superconducting magnetic field
◆Temperature range:8K-300K ◆ 6 probe arm interfaces ◆ Vertical magnetic field strength within the entire temperature range: ± 3T ◆ Allow unsupervised cooling ◆ Circulating electric refrigeration, no refrigerant required
◆One click cooling, one click reheating, automatic temperature control, automatic field control ◆Automatic testing function
|
 |
Specifications
Chuck stage
|
Model |
CRX-SM |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2 |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
