Sealed chamber, optimized design with low liquid nitrogen consumption.
No frost, high precise screw drive structure, linear movement.

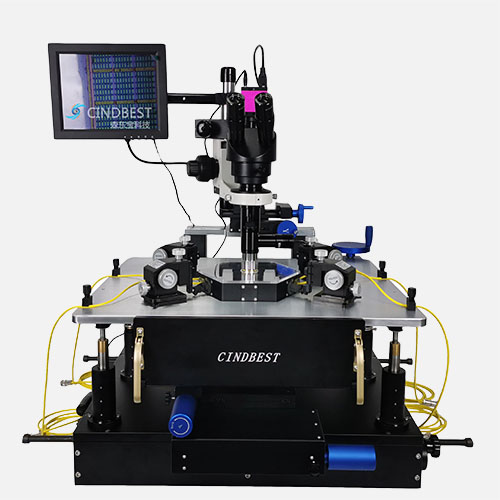

CT-6 |6~12" non-vaccum high and low temperature probe station
|
Features / Applications
◆ Up to 12 inches wafer
◆ Sealed chamber, isolated from external interference
◆ Optimized design with low liquid nitrogen consumption
◆ No frost under low temperature
◆ High precise screw drive structure, linear movement
◆ Compatible for multiple types of microscope
◆ Modular design, seamless upgrade
◆ Non-standard product, can be customized upon request
|
 |
Specifications
Chuck stage
|
Model |
CT-6/CT-8/CT-12 |
|
Chuck size |
6"/8"/12" |
|
Rotation angle |
360°with angle locking, fine-tuning for 15° with 0.1μm resolution |
|
X-Y travel range |
6"*6"/8"*8"/12"*12" |
|
X-Y travel resolution |
10μm/1μm |
|
Sample mounting type |
Vacuum |
|
Chuck capacity |
U shape, up to 12 micropositioners |
|
Electrical design |
Electrical floating on chuck back, can be used as gate electrode |
Optical system
|
Microscope |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 2"*2", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Micropositioner
|
X-Y-Z travel range |
12mm-12mm-12mm |
|
Resolution |
10um/2um/0.7um/0.5um |
|
Mounting type |
Magnetic/vacuum |
|
Cable |
Coaxial/triaxial |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Cable adaptor |
Banana head /Crocodile clip /Coaxial /Triaxial |
|
Probe tip diameter |
0.2um/1um/2um/5um/10um/20um upon request |
|
Probe metal |
Tungsten/Beryllium copper upon request |
Optional accessories
|
Hot chuck |
|
Display screen |
|
Connector |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
Optical platform |
|
Gold plated Chuck |
|
Light intensity / wavelength testing |
|
High voltage test accessories |
|
Microscope quick inclining device |
|
Laser system |
|
Probe card clamp |
Specifications and designs are subject to change without notice.
|
